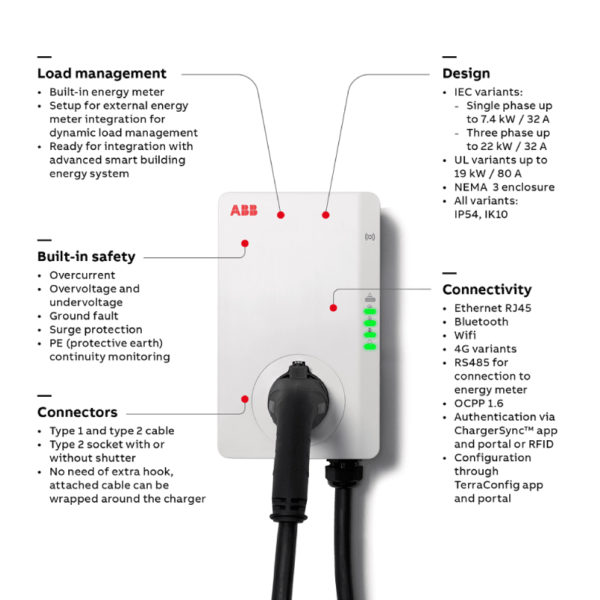

Main benefit
Space-saving and easy-to-install design
Smart functionality for optimized charging
Remote software updates
Broad range of connectivity options
Built-in energy meter for load management
Main features
Complying with IEC standards
Three phase up to 22 kW / 32 A
Protection IP54, IK10
Connectors type 2 socket with or without shutter
Overcurrent, overvoltage, undervoltage, ground fault and surge protections integrated
Charging Cable Length 5m Type 2 connector
Warranty 2 Years.
General Information |
|
| Extended Product Type: | TAC-W22-T-0 |
| Product ID: | 6AGC081279 |
| ABB Type Designation: | Terra AC |
| EAN: | 8,719,870,000,000 |

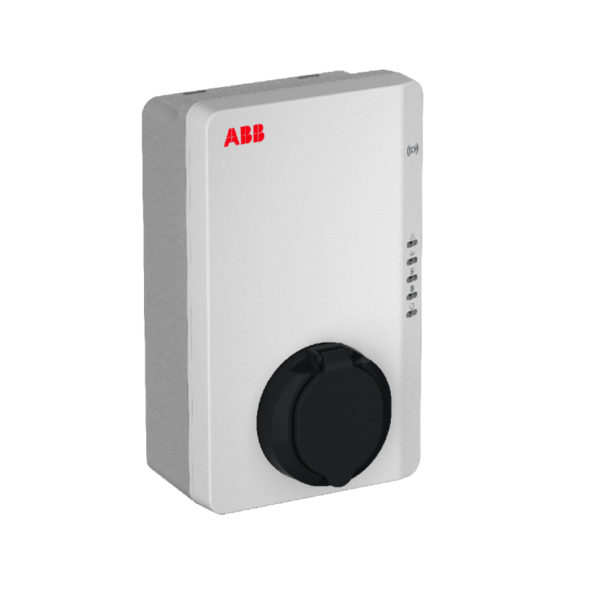

| Catalog Description: | TAC-W22-T-0 Terra AC wallbox type 2, socket, three phase/32A |
| Long Description: | TAC-W22-T-0 AC wallbox type 2, socket, three phase/32A |
| Categories | Products » Electric Vehicle Infrastructure » AC Charging » AC Chargers CE |
Technical |
|
| Output Power: | AC 22.1 kW |
| Number of Socket Outlets: | (AC Type 2) 1 piece |
| Output Voltage (Uout): | 380 … 415 V AC |
| Output Current: | 3 phase 32 A |
| Connection Power: | Nominal 22.5 kW |
| Supply Voltage: | AC 380..415 V |
| Input Current: | 3 phase 32 A |
| Operating Frequency (fsw): | 50 … 60 Hz |
| Number of Phases: | 3 |
| Connection Configuration: | TT, TN |
| Number of RCDs Electric Vehicle Supply Equipment: | Type A1 |
| Number of Miniature Circuit Breakers (MCBs): | 0 |
| Overvoltage Category: | III |
| Overload Protection: | Overcurrent protection at 40A |
| Ambient Air Temperature: | Operation -30 … +50 °C , Storage -50 … +80 °C |
| Maximum Operating Altitude Permissible: | 2000m |
| Communication Interface: | Wi-Fi, Bluetooth |
| Enclosure Type: | indoor, outdoor |
| Mounting Type: | Wall mounting |
| Degree of Protection: | acc. to IEC 60529 IP54 |
| Impact Resistance Rating: | IK08 |
Dimensions |
|
| Package Level 1 Units: | carton 1 piece |
| Package Level 1 Width: | 0.26 m |
| Package Level 1 Height: | 0.2 m |
| Package Level 1 Depth / Length: | 0.40 m |
| Package Level 1 Gross Weight: | 3.5 kg |
| Package Level 1 EAN: | 8.72E+12 |
| Package Level 2 Units: | crate 8 piece |
| Package Level 2 Width: | 0.90 m |
| Package Level 2 Height: | 0.20 m |
| Package Level 2 Depth / Length: | 1.00 m |
| Package Level 2 Gross Weight: | 28 kg |
Ordering |
|
| Customs Tariff Number: | 85371098 |
| Minimum Order Quantity: | 8 piece |
| EAN: | 8.72E+12 |
| ETIM 7: | EC002883 – Charging device E-Mobility |
| UNSPSC: | 25175002 |
Additional Information |
|
| Housing Material: | Plastic |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Load Management Method: | OCPP – Based |
| Standards: | EN 61851-1 , EN 61851-23, EN 61000-6-2, EN 61000-6-3, EN 301 908-2, IEC 60721-3-2: IE23, RoHS |
| Declaration: | UL |
